Ventron Storage Portfolio

Power Storage

Browse battery storage systems designed for backup, energy shifting, and grid-independent operations.

Home / Power Storage

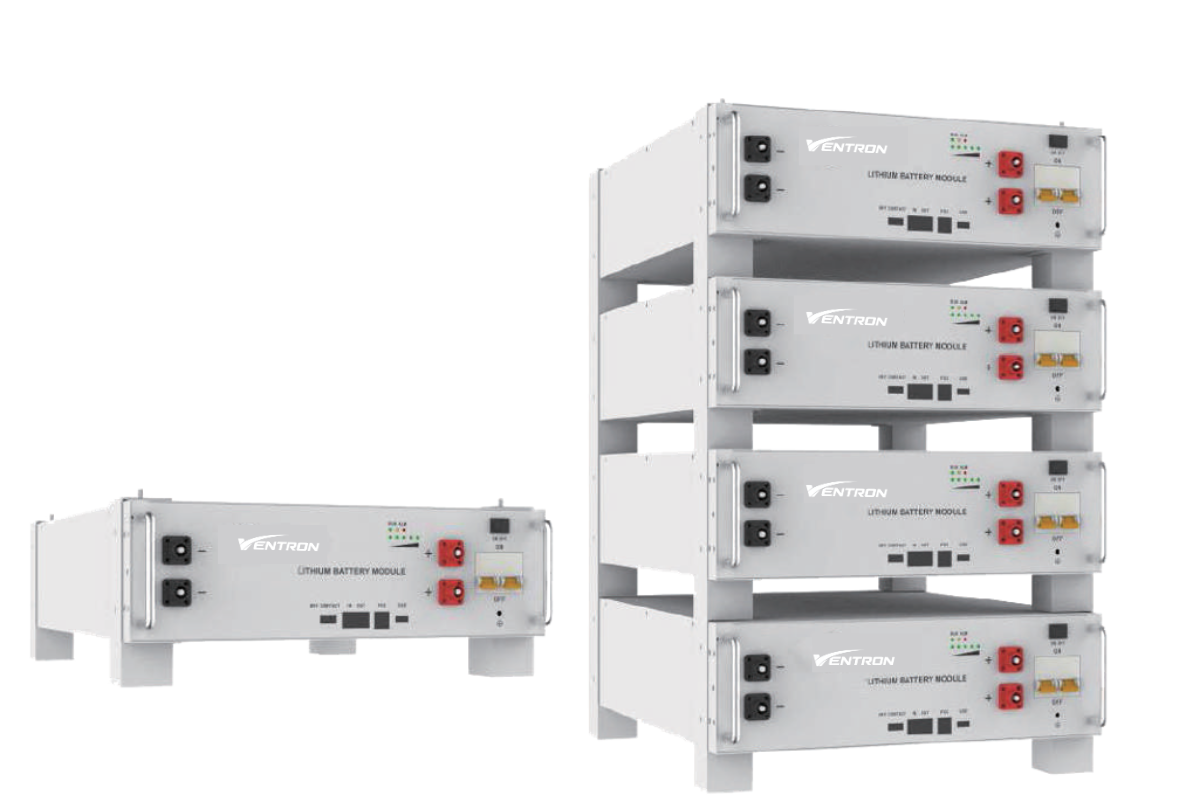

Rack Mounted LV Battery GLR-100

Rack Mounted LV Battery

Model: GLR-100

Nominal Voltage: 51.2V
Nominal Capacity: 5.12kWh
Charge Voltage: 57V
Weight: 50kg
Communication: CAN / RS-485 / LAN / Bluetooth
Transport or Storage Temp Range: -20°C ~ 45°C
Cycle Life: ≥ 6000 times until 70% SOH under 25±2°C, 0.5C and 100% DOD

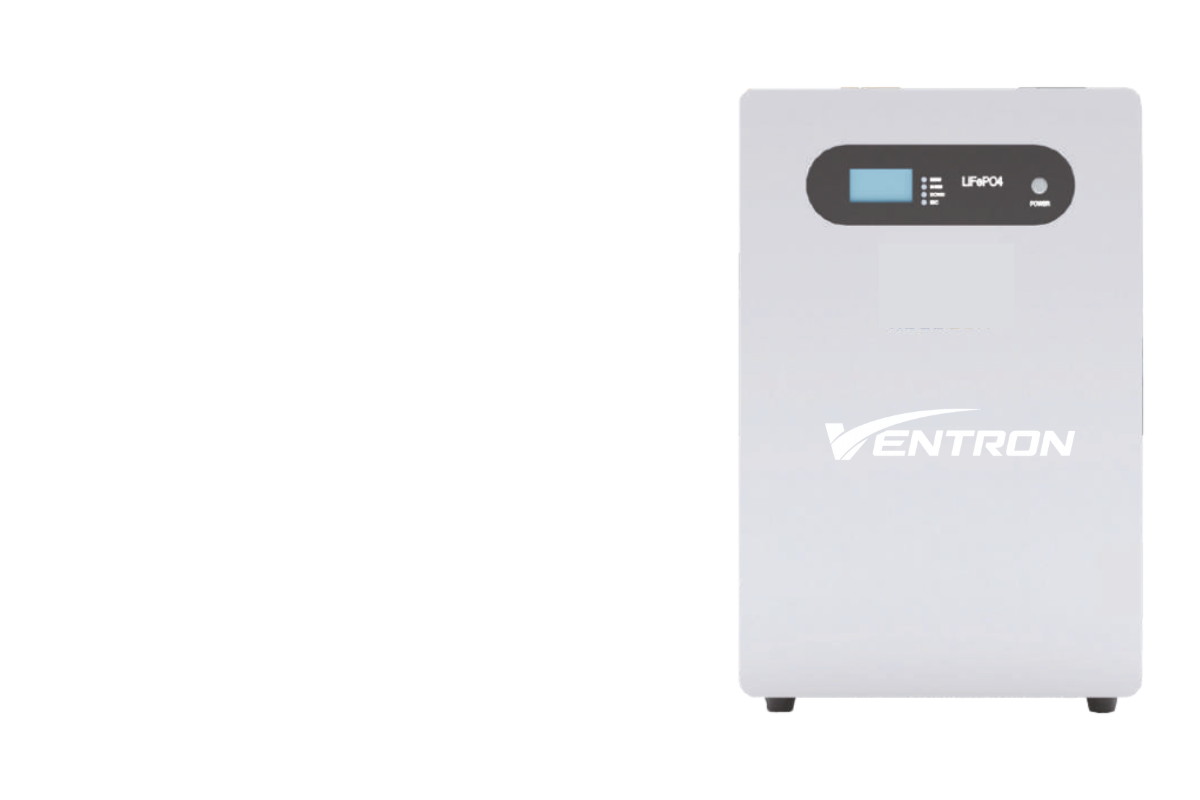

Powerwall LV Battery GLW-200

Powerwall LV Battery

Model: GLW-200

Battery Type: LiFePO4 (LFP)
Nominal Voltage: 51.2V
Nominal Capacity: 200Ah
Nominal Capacity (KWH): 10.24kWh
Discharge Voltage: 43V
Charge Voltage: 57V
Dimension: 790 x 580 x 215 mm
Weight: 98kg
Max Charge/Discharge Current: 100A (Max)
Communication: CAN / RS-485 / LAN / Bluetooth
Working Temperature: 0°C to 50°C (Charge), -10°C to 50°C (Discharge)
Shelf Temperature: -20°C to 60°C
Cycle Life: ≥ 6000 times until 70% SOH under 25±2°C, 0.5C and 100% DOD

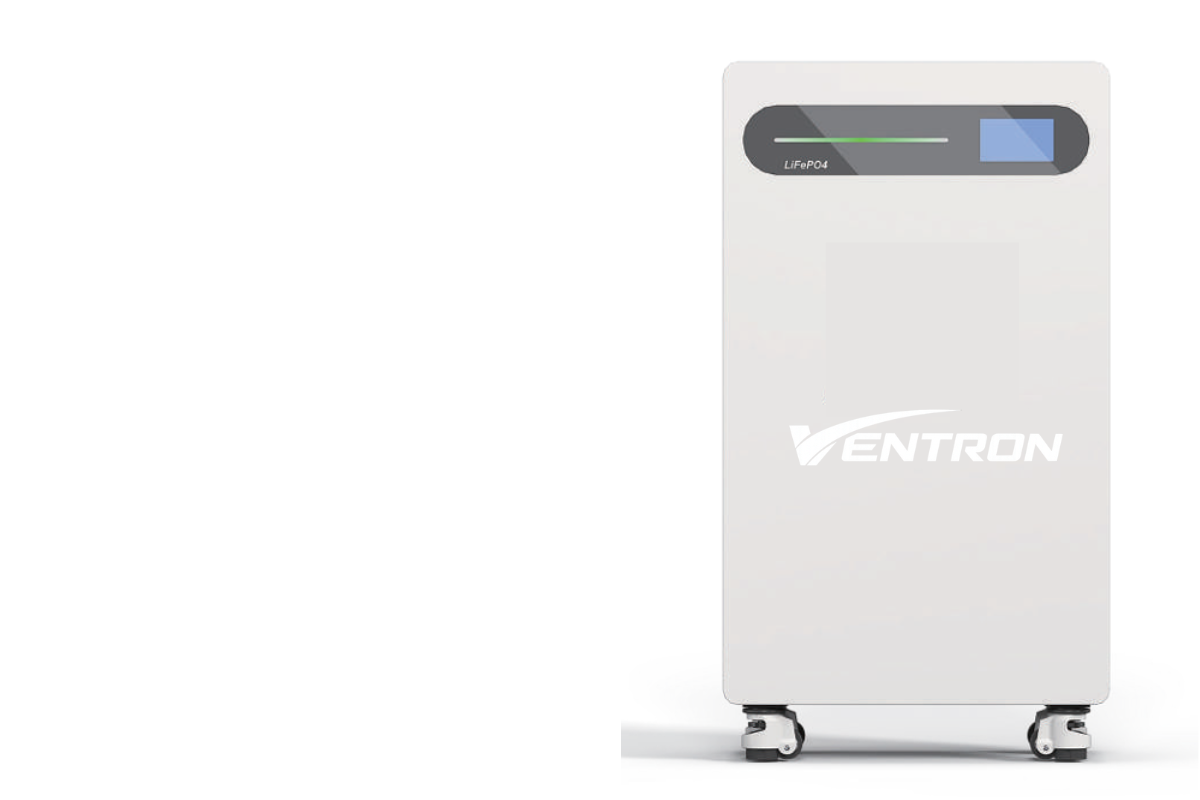

Wheel LV Battery GLM-280 GLM-314

Wheel LV Battery

Models: GLM-280 / GLM-314

Battery Type: LiFePO4
Nominal Voltage: 51.2V
Nominal Capacity: 280Ah (GLM-280) / 314Ah (GLM-314)
Nominal Capacity (kWh): 14.33kWh / 16.08kWh
Discharge Voltage: 44.0V - 58.4V
Charge Voltage: 56.0V - 58.4V
Dimensions: 435 x 234 x 800 mm (GLM-280), 580 x 278 x 900 mm (GLM-314)
Weight: 115kg (GLM-280), 120kg (GLM-314)
Installation: Floor mounted
Design Life: 15+ years (25°C / 77°F)
Charge/Discharge Current: 100A (recommended), 200A (max)
Internal Resistance: <30mOhm
Power Consumption: <2W (work), <100mW (sleep)
Monitoring Parameters: system voltage, current, cell voltage, cell temperature, module temperature
SOC: Intelligent algorithm
Communication: CAN / RS-485
Operating Temperature Range: -10°C to 50°C
Transport Storage Temperature Range: -20°C to 60°C
Humidity: 15% - 85% (no condensing)

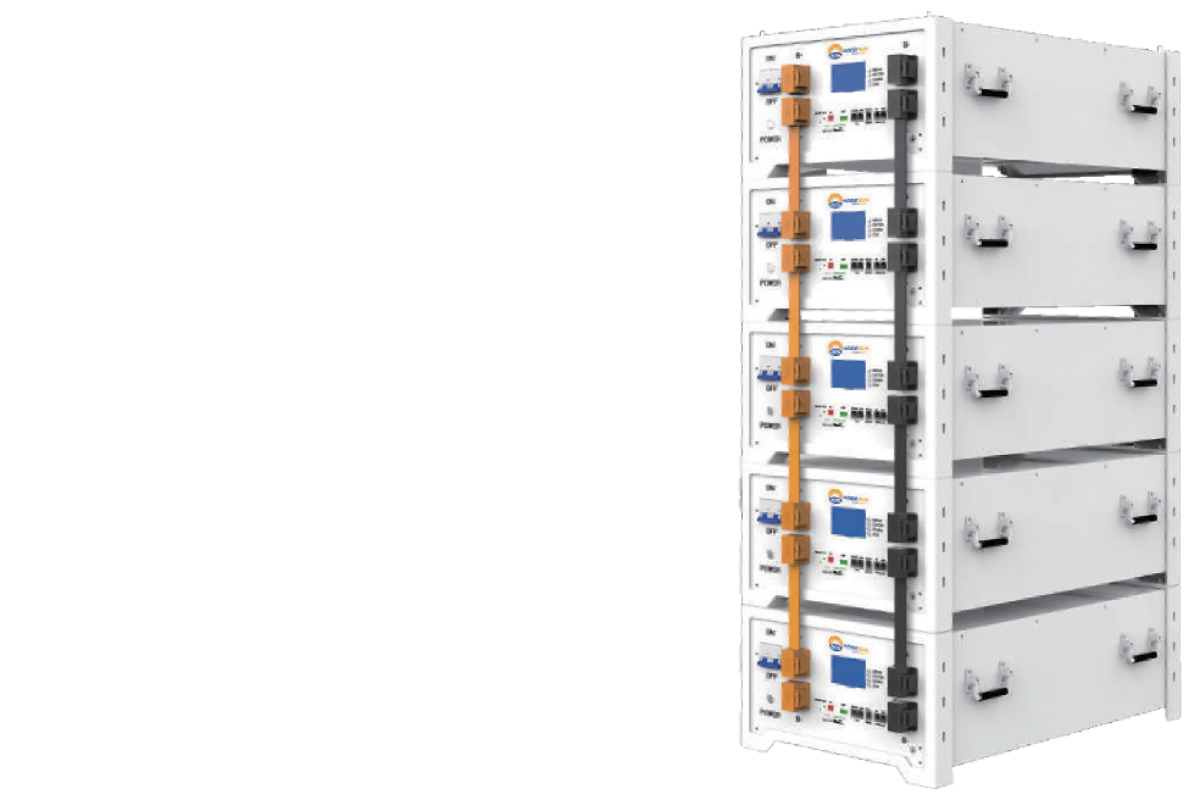

Stacked LV Battery

Stacked LV Battery

Floor-Mounted Stacked Energy Storage

Design Life: 15+ years (25°C / 77°F)
Charge/Discharge Current: 100A (recommended), 200A (max)
Internal Resistance: <30mOhm
Power Consumption: <2W (work), <100mW (sleep)
SOC: Intelligent algorithm
Communication: CAN / RS-485
Operating Temperature Range: -10°C to 50°C
Transport Storage Temperature Range: -20°C to 60°C
Humidity: 15% - 85% (no condensing)
Warranty: 10 years

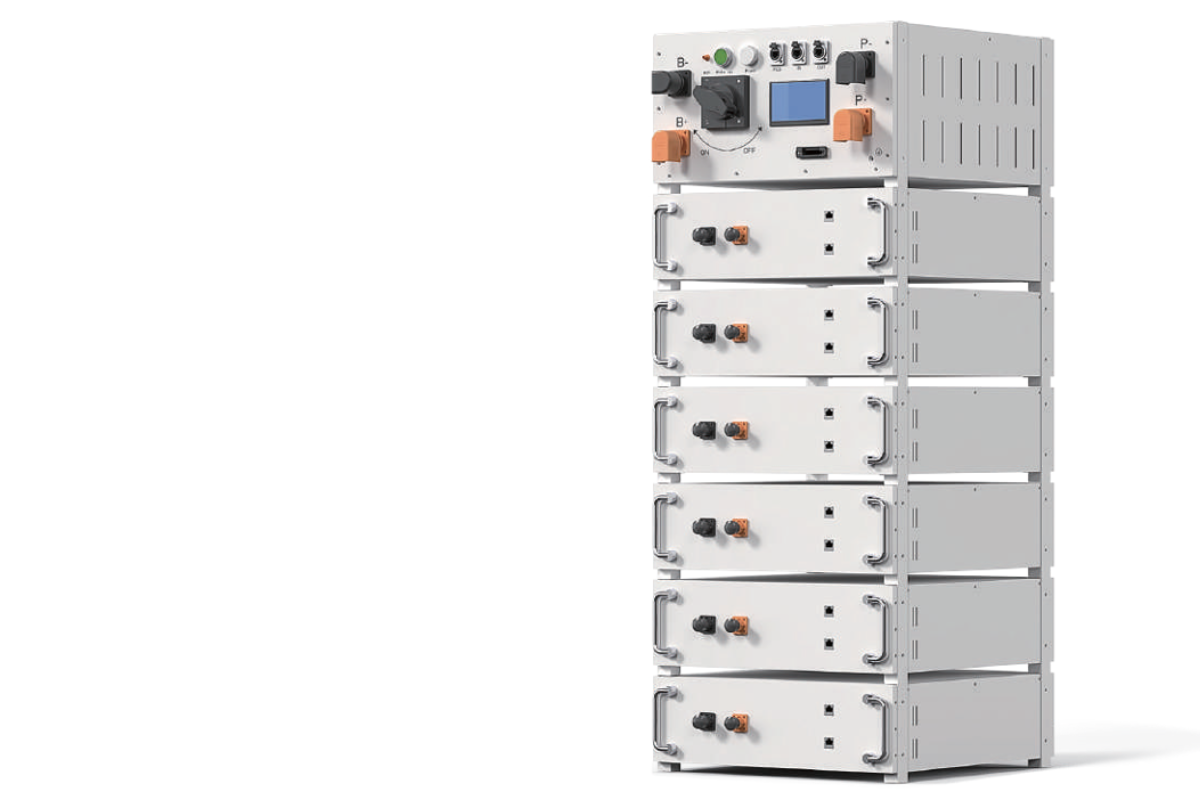

Stacked Type HV Battery GHS-100

Stacked Type HV Battery

Model: GHS-100

Battery Type: LiFePO4 (LFP)
Battery Module: 51.2V 100Ah
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah
Nominal Capacity (KWH): 5.12kWh
Dimension: 482 x 475 x 133 mm
Module Qty in Series: 4 to 10 pcs
Battery System Energy: 20.48kWh to 51.2kWh
System Usable Energy (90% DOD): 18.43kWh to 46.08kWh
Operating Voltage Range: 179.2-230.4V up to 448-576V
Charge/Discharge Current: 50A (recommended)
Communication: CAN / RS-485
Operating Temp. Range: Charge 0~55°C, Discharge -20~55°C
Transport or Storage Temp. Range: 20°C - 45°C
Humidity: 10% - 95% (no condensing)
IP Rating: IP20
Warranty: 10 years
Maximum Number of Connections: 12 pcs

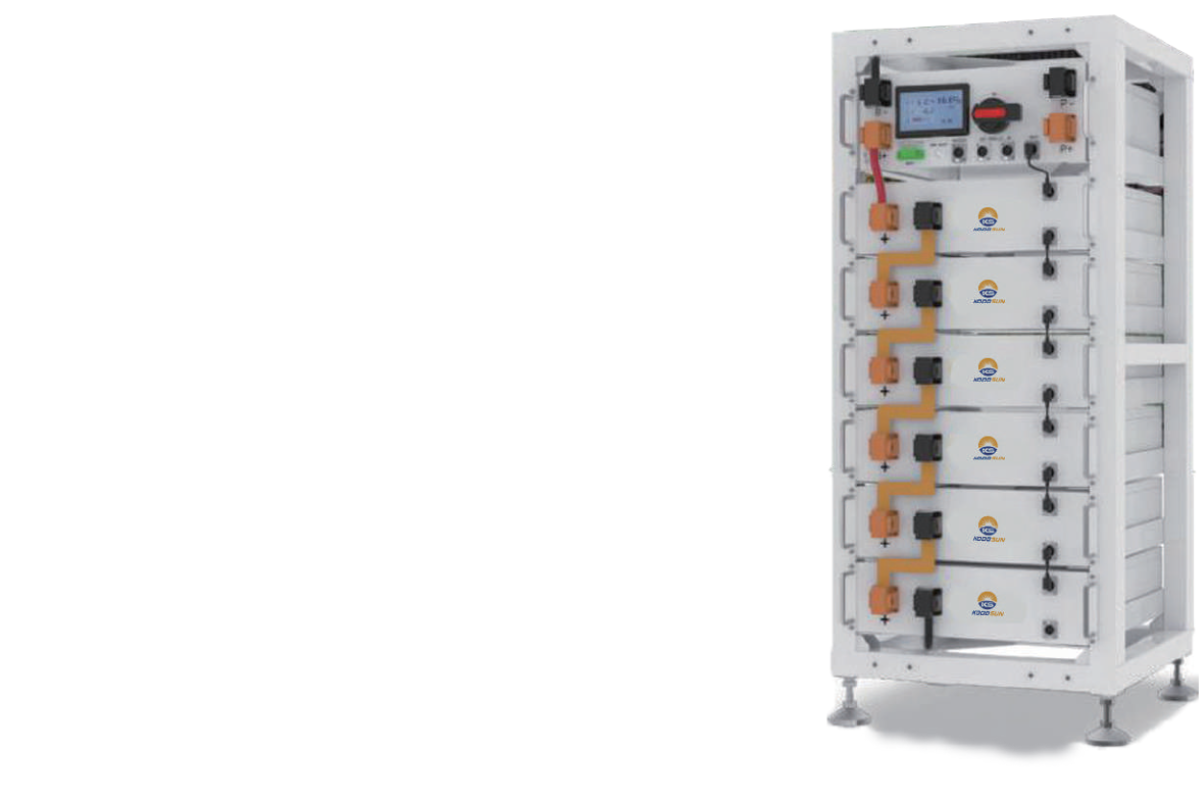

Rack Mounted HV Battery GHR-280 GHR-314

Rack Mounted HV Battery

Model: GHR-280 / GHR-314

Battery Type: LiFePO4 (LFP)
Nominal Voltage: 51.2V
Nominal Energy: 280Ah / 314Ah
Battery Rated Energy: 14.33kWh / 16.07kWh
Charging Current: 140 / 157
Discharging Current: 140 / 157
Module Configuration: 14 pcs in series, or 12 pcs in series with 2-3 clusters in parallel
Battery System Energy: 200.62/224.98kWh, 344.06/385.68kWh, 516.09/578.52kWh
System Usable Energy (90% DOD): 180.65/202.48kWh, 309.65/347.11kWh, 464.68/520.67kWh
Operating Voltage Range: 627.2-806.4V, 537.6-691.2V
Max Discharge Current: 140A/157A, 280A/314A, 420A/471A
Communication: CAN / RS-485
Discharge Temp: -20°C to 60°C
Charge Temp: 0°C to 55°C
Humidity: 10% - 95% (no condensing)
Cycle Life: ≥ 6000 times until 70% SOH under 25±2°C, 0.5C and 100% DOD
Maximum Number of Connections: 15 pcs

20GP 40HQ Energy Storage System

20GP / 40HQ Energy Storage System

Containerized Energy Storage Integration System

Battery Type: LiFePO4
Models: 20GP ESS / 40HQ ESS
Rated Capacity (Ah): 1570 / 3140
Rated Energy (MWh): 1.2 / 2.411
Voltage Range: 672 - 864V, Rated Voltage: 768V
System Efficiency: 96%, Depth of Discharge: 90%
System Charge/Discharge Rate: 0.5C / 0.5-1C
Dimensions (mm): 6058 x 2438 x 2896 (20GP), 12192 x 2438 x 2896 (40HQ)
Weight (t): 16 (20GP), 38 (40HQ)
Operating Temperature: 0-50°C, Air-cooled; Altitude: < 2000m
Humidity: 5%-95%, Cycle Life: ≥ 6000 times until 70% SOH
Battery Module Config: 75 pcs 51.2V 314Ah / 150 pcs 51.2V 314Ah
Design Life: > 15 years, Combination Method: In Parallel
Communication: CAN / RS-485
Inverter: 500kW, 400V AC, 50/60Hz, Air Cooling

Showing 7 products.
